Article

Comprehensive Survey of Area-Wide Agricultural Pesticide Use in Southern United States Row Crops and Potential Impact on Honey Bee Colonies

1

Department of Entomology and Plant Pathology, University of Arkansas System, Division of Agriculture, Little Rock, AR 72204, USA

2

Southern Horticultural Laboratory, Agricultural Research Service, United States Department of Agriculture, Poplarville, MS 39470, USA

3

Department of Entomology and Plant Pathology, University of Arkansas System, Division of Agriculture, Lonoke, AR 72086, USA

4

Department of Entomology and Plant Pathology, Department of Entomology and Plant Pathology, The University of Tennessee, Knoxville, TN 37996, USA

5

Department of Entomology and Plant Pathology, University of Arkansas, Fayetteville, AR 72701, USA

*

Author to whom correspondence should be addressed.

Received: 18 September 2018 / Revised: 9 August 2019 / Accepted: 27 August 2019 / Published: 2 September 2019

Abstract

Honey bees forage across a large area, continually scouting the local landscape for ephemeral food resources. Beekeepers often rely on flowering plants in and around irrigated farmland to maintain their colonies during dry seasons, despite the potential risk of pesticide exposure. Recent declines in pollinator abundance and diversity have focused attention on the role of pesticides and their effects on honey bee health. This investigation examined two types of landscapes within a two-mile (3.2 km) radius of honey bee colonies: an intensive agricultural setting and a rural setting without intensive agriculture. More than 10,000 acres of agricultural land was surveyed to quantify the area of cultivated crops and the area treated with pesticides, including seed treatments and foliar applications of insecticides. Samples of honey, bee bread (stored pollen), beeswax, and adult bees were collected from hives in both landscape types and screened for pesticide residues to determine if foraging bees were transporting pesticides to hives. Some samples of bee bread and honey did contain pesticide residues, but these were below known lethal dose (LD50) levels for honey bees. Beeswax samples contained the highest levels of contamination, but most were still relatively low. Samples were screened for 174 common agricultural pesticides and metabolites, but only 26 compounds were detected during the two-year study. These included one defoliant, one insect growth regulator, five herbicides, six fungicides, six insecticides never used in beekeeping, and five insecticides/miticides and their metabolites, which are used in beekeeping and for various other agricultural purposes, as well as two miticides exclusively used by beekeepers to control Varroa destructor. Bee colonies foraging in agricultural landscapes are potentially exposed to numerous pesticide applications. While the residues detected in this study did not pose an acute lethal risk to adult honey bees, this study did not measure sublethal effects on bee colony health or performance, which merit further investigation.

1. Introduction

Honey bees (Apis meliffera L.) are known to forage for food across an extensive landscape, up to three miles (5 km) or more from their hives [1]. While foraging distances are highly variable in different landscapes and in different seasons, as long as adequate resources are available, foragers tend to remain closer to their hives in order to conserve energy, within an average distance of about one mile (1.6 km) or less, and sometimes only a few hundred yards in agricultural settings with abundant food [2,3,4]. However, bees can range much farther for highly desirable food [5]. Honey bees exhibit preference for visiting flowers with high sugar content in the nectar, and will fly farther for higher quality forage, while bypassing lower quality forage nearby if the net caloric gain is greater [6]. Honey bees appear to be able to differentiate, and actively diversify their foraging, to compensate for protein deficiencies in dietary pollen [7,8]. Also, the floral resources available to bees are often ephemeral, with some species blooming for only a short time each season. For these reasons, bees continuously scout their territory to readily and efficiently exploit new sources of food before competitors [1].

The foraging activities of bee pollinators affect the continued survival of plant species as well as the genetic structure of distinct plant populations. Pollinator preferences have likely been a long-term driver of angiosperm speciation and evolution [9]. Both the long-range foraging habits of honey bees, and the relatively limited foraging range of solitary bee species, may be essential to the survival of plants in disturbed or fragmented habitats [10,11], such as those surrounding agricultural production areas. Small uncultivated areas within crop production landscapes can also serve as important refuge habitats for pollinators and other beneficial insects, as well as other wildlife species [12,13,14]. Many agricultural crops rely on insect pollination, either partially or completely, to ensure fruit and/or seed production [15]. Cereal grains such as corn, wheat, and rice are primarily wind-pollinated and do not require insect visits [16], although bees may sometimes collect their pollen for food [17]. Some large-scale commodity crops such as cotton and soybeans can be self-fertile and do not require insect pollination to produce yield, but there is some evidence that pollinator visits can increase yield production [18,19,20,21].

Commercial beekeepers often rely on irrigated farmland to sustain large numbers of honey bee colonies, and to produce surplus honey during dry periods, which would otherwise be a nectar dearth outside of an agricultural setting [22]. The amount of honey that these colonies can produce is affected by multiple factors that can determine nectar production, including cultivar variety, soil conditions, and weather [23,24]. While large-scale plantings of flowering crops can be significant nectar sources, bees in agricultural areas also greatly benefit from the presence of diverse wild flowers (i.e., weeds), which are also sustained on and around farms through dry conditions by crop irrigation. These plants can provide bees with additional pollen and nectar resources when crops may not be in bloom or when monocultures may not provide sufficient nutrition on their own [25,26]. Sponsler and Reed [27] reported that wax production and food accumulation were both positively correlated with proximity to crop land, as opposed to urban area, forest, or grassland. While intensive agricultural landscapes can greatly benefit honey bee colonies, beekeepers who maintain colonies in these areas must also be constantly wary of pesticides that can negatively affect their bees.

When foraging in an agricultural landscape, honey bees are potentially exposed to numerous insecticides, fungicides, herbicides, and other agricultural chemicals. Recent widespread declines in bee populations across the country have focused public scrutiny on the negative effects that agricultural chemicals may have on pollinator health [28,29]. Due to their widespread use in agriculture, especially as a pre-planting seed treatment, the neonicotinoid group has received particular attention because of suspected associations with declines in honey bee populations and health. These systemic insecticides can be translocated through the plant and into pollen and nectar, which becomes available to pollinating insects in sublethal quantities, which can negatively affect the behavior, reproduction, and survival of honey bees [30,31,32,33] and bumble bees [34,35].

The mid-South region of the United States has abundant agriculture as well as an abundance of diverse agricultural pests. Intensive crop production involves the diligent and routine scouting of fields for insects, weeds, and diseases, which are conventionally managed with a variety of insecticides, herbicides, and fungicides. Pesticide application decisions are routinely based on monitoring by crop consultants who determine appropriate pest control strategies. Honey bees from colonies in agricultural areas that are exposed to pesticides may transfer these compounds into the hive, potentially affecting the entire colony. When principles of integrated pest management (IPM) are followed, and pesticides are applied only on an as-needed basis, pests can be controlled while reducing off-target exposure to pollinators and other beneficial arthropods [36]. However, even with careful use, some level of exposure will likely be inevitable.

Pollen and/or bee bread collected from hives in numerous locations in France revealed contamination from multiple pesticides [37]. Bernal et al. [38] evaluated the pesticide residues in stored pollen from honey bee colonies in Spain, and found varying concentrations of numerous residues in both spring-collected and fall-collected samples. Mullin et al. [39] analyzed samples of beeswax, pollen, and honey bees from across North America, and detected 121 pesticides and their metabolites, with most samples containing multiple residues. In all of these studies, among the most prevalent residues detected were products routinely applied to hives by beekeepers for the control of Varroa mites, although some of these products have other pest-control applications as well. In Canada, Codling et al. [40] reported the detection of neonicotinoid insecticides and their breakdown metabolites in honey, pollen, and honey bees, although concentrations in most samples did not approach oral LD50 values for honey bees. That investigation did not screen for other classes of pesticides.

The current study describes the potential chemical exposure within the foraging territory of bee colonies located in an agricultural setting in the southern United States. The study sites were selected to represent the diversity of mid-South agriculture as well as areas with little or no agriculture. The crops in the intensive agriculture area were primarily soybeans, rice, corn, and cotton, with a few other minor crops, which included grain sorghum and green beans. Growers utilize a diverse selection of pesticide products for conventional production in Arkansas and the mid-South region, including herbicides, fungicides, and insecticides (including neonicotinoids as both as seed-treatments and foliar applications). A detailed survey was conducted to determine which crops were grown, and which pesticides were applied, across the entire landscape within a two-mile radius around an apiary. Sample of bees, beeswax, honey, and pollen were also collected from hives and screened for the presence of pesticide residues to which worker bees may have been exposed during foraging activity, and may have been brought back to the hive in collected food.

2. Methods and Materials

The survey was conducted in Lonoke County, Arkansas, during the 2014 and 2015 growing seasons. An apiary ("High-Ag" site) was established in April 2014, in an area where more than 80% of the landscape was under cultivation using conventional agricultural crop production methods and pesticide use. This site was representative of conditions around honey bee colonies in agricultural areas in the region. Four bee colonies were established in new 10-frame Langstroth beehives (two deep hive bodies each), using wired-beeswax foundation. All the beehive equipment was purchased from The Walter T. Kelley Company (Clarkson, KY, USA). Hives were protected from drift on all sides by a tree line, but bees had easy flight access to extensive cultivated row crop landscape in all directions (Figure 1).

A second apiary ("Low-Ag" site) was established at the same time, with four colonies, using identical equipment from the same sources. The Low-Ag site was also in Lonoke County, approximately 20 miles (32 km) from High-Ag site. The Low-Ag landscape was composed primarily of native grasses and forbs, pasture land, woodland, and some commercial fish farms, but was not surrounded by intensive row crop production (Figure 2).

The two sites were chosen for comparison because they were close together, with similar climate conditions, but surrounded by very different land use. Commercial beekeepers in the region favor apiary locations adjacent to agricultural land for higher honey production over non-agricultural land, despite the risk of pesticide exposure [22].

In 2014, all the colonies in both locations were started from three-pound packages purchased from the same source. In April 2015, eight additional colonies were established at the High-Ag site from locally-sourced nucleus colonies, and transferred into new, identical hives from the same source, as in 2014.

All the colonies, both years, were initially provided with 1:1 (sugar:water) syrup ad libitum for 1 month to help them establish and produce fresh comb. After this initial period, colonies foraged within the surrounding landscape for all their nutritional needs. All the colonies were managed with standard practices, for normal honey production, with additional hive bodies added as necessary. Queen excluders were not used, so that brood nest expansion was unlimited. No varroa control products were applied in 2014 prior to hive product sampling. Thymol (Apiguard®, Vita (Europe) Ltd., Basingstoke, UK) was applied, following label instructions, after hive products were sampled in 2014. In 2015, all the new nucleus colonies had been treated with amitraz (Apivar®, Véto-pharma, Palaiseau, France) for early season Varroa mite control prior to our purchase of them. Thymol (Apiguard®) was applied to all the colonies on 20 August, according to label instructions, approximately 5 weeks prior to taking hive product samples.

A map was created of the area surrounding the High-Ag apiary, and all the agricultural fields within a 2-mile (3.2 km) radius of the apiary were defined and measured using ArcGIS software (Esri, Redlands, CA, USA). If fields extended beyond this radius, the acreage of the entire field was included. While the actual honey bee foraging territory is potentially much larger than the acreage surveyed, land-use and farming practices are fairly consistent throughout the area surrounding the study site; therefore, the surveyed area is representative of the conditions that foraging honey bees would encounter in the local landscape outside of the survey radius.

Each crop field within the High-Ag study site was visually inspected to determine which crops were planted for two growing seasons. Growers were personally contacted and surveyed regarding their application of insecticides on each field. The survey determined only the presence of compounds (active ingredients) and/or specific product names that were applied. Information on the application rates, number or timing of applications made to all fields, and methods of application were not collected. The information gathered was limited to that which was voluntarily supplied by growers. While this data is likely incomplete, it does represent a minimum indication of the presence of these compounds applied to this landscape. The use of insecticide seeds treatments at planting was noted, and included as an application. Herbicide applications were not included in the survey, but were likely applied to most fields as a standard practice. Particularly, glyphosate (Roundup®, Bayer Ag, Leverkusen, Germany) was assumed to have been applied to most crops with engineered tolerance (soybean, corn and cotton), except for rice, green beans, and grain sorghum.

A map of the Low-Ag landscape was also made, and land use was calculated. An extensive survey of landowners in this area was not conducted, because this area did not contain significant large-scale row crop acreage. The majority of the landscape was pasture and woodland, but also contained a small fruit and pecan operation, some home gardens, a small dairy farm, and some commercial fish farming within the bees' foraging range. While the fish farm could have been utilized as a water source by the bees, it is unlikely, as there were numerous fresh water sources (creeks and ponds) much closer to the apiary. Some soybean production was located approximately 2.5 miles (4 km) from the apiary, and an area of wheat was located approximately 1.5 miles (2.4 km) away, which was likely ignored by bees for lack of nectar. No other row-crop agriculture was located in the vicinity.

Samples were collected from bee hive products to determine if field-applied agricultural pesticides could be detected in beehives. Prior to colony installation in 2014, two samples of beeswax foundation were collected. Pieces of beeswax were sampled from 10 randomly selected sheets of wax foundation, which were part of a bulk purchase from which all the foundation used in the study originated. Additionally, two samples of adult bees were pooled from random packages at the time of colony installation. Later in the season, additional samples were taken from hives in both study apiaries (High-Ag and Low-Ag) in 2014. These samples included newly drawn beeswax comb (not yet used for brood-rearing or food storage, removed avoiding the foundation wax), bee bread (stored pollen), and adult honey bees randomly collected from inside the hive. Each sample consisted of 3–4 g of material or bees. All the samples were collected with sterile instruments, immediately placed on ice in the field, and later stored at −12 °C. Samples were shipped frozen, with dry ice, to the USDA's National Science Laboratory in Gastonia, North Carolina, for their comprehensive apicultural pesticide screening. Sampling of live bees and hive products was repeated in 2015 only at the High-Ag site.

During 2014, samples for residue testing were collected on 6 August, and again on 24 September. On 6 August, samples of new beeswax, bee bread, and adult bees were collected from each of two hives at the High-Ag site and from each of two hives at the Low-Ag site. On 24 September, the sampling procedure was repeated from each of the same hives at both sites, with capped honey also collected from each of the same hives.

In 2015, samples of adult honey bees and beeswax from combs in nucleus colonies were collected when the colonies were initially established. However, these samples were accidently destroyed in shipment, and could not be analyzed for residue contaminants. Additional samples of hive products were collected on 29 September from 4 hives in the High-Ag area. The samples included new beeswax, bee bread, honey, and adult bees. Colonies in the Low-Ag area were not sampled in 2015, because none of the Low-Ag samples from 2014 contained detectable residues except for the new beeswax, which contained only very low levels. Resources were instead devoted to samples taken in the High-Ag apiary.

3. Results and Discussion

The survey of the High-Ag landscape included all the area within a two-mile radius of the apiary (8038 acres). If cultivated fields extended beyond this radius, the entire field was included. The total surveyed area under cultivation varied between 2014 (12,160 acres) and 2015 (10,063 acres). The total area of the survey was slightly different between years because of changes in land management, and an inability to contact some growers for interviews. The aerial map in Figure 1 shows the High-Ag area surveyed, in the context of its surrounding landscape. Crops in the High-Ag area included a predominant commercial production of soybeans, corn, rice, cotton, and grain sorghum, as well as small areas of green beans, some commercial fish farming, woodland, wetlands, pasture, and fallow fields, which are typical of this area. The maps in Figure 2 indicate the distribution of land use by crop around the High-Ag site for both years. Slight changes in land use between growing seasons did occur, but did not significantly modify the overall composition of the landscape. Figure 3 shows an aerial view of the landscape around the Low-Ag apiary site, which was dominated by a mixture of pasture and woodlands, with some small home gardens, commercial fish farming, and a few small fruit operations, but very little row crop agriculture. Figure 4 outlines the dominant land use within a two-mile radius of the beehives.

An average of 81% of the landscape was under cultivation in the High-Ag area during the 2014 and 2015 growing seasons (Table 1). The largest proportion (57%) was planted with soybeans, while 10% was used for rice, 8% was used for corn, and 6% was planted with minority crops (cotton, grain sorghum, green beans). The remaining landscape was comprised of 15% uncultivated land (fallow fields, pasture, woodland, wetland), with 4% devoted to commercial fish ponds. This extensive agricultural area supplied bee colonies with ample forage to build up population numbers and produce surplus honey, but also had potential for significant exposure to numerous pesticides applied throughout the season. Grower-reported applications of insecticides and fungicides in 2014 and 2015 are summarized by crop in Table 2.

The Low-Ag site, within two miles (3.2 km) of the apiary, had very little of the landscape devoted to row crop agriculture (Table 3). Less than 6% of the landscape was devoted to wheat—which is not attractive to honey bees—and fish farming. The rest of the land around the site was either woodland (54%) or grass/pasture (43%). Pastures may contain bee-attractive flowers, and are sometimes treated for fall armyworms to protect grazing and hay crops, but no products recommended for armyworm control [41] were detected in any of our samples.

Figure 5 illustrates the reported distribution of crops planted with neonicotinoid seed treatments. These treatments have come under particular scrutiny for their potential to translocate toxins and make them available to foraging bees in pollen and nectar, however Stewart et al. reported generally low concentrations of these products when sampling seed-treated crops growing in the mid-South [42]. Figure 6 illustrates the distribution of foliar pesticide applications reported around the apiary site.

Samples of package bees and beeswax foundation were taken when colonies were established and screened for pesticide residues along with hive products sampled later in the season. Both the package bees and foundation wax contained compounds that we had not applied to the hives, and were not reported as used by area farmers, but were detected (Table 4). Coumaphos and fluvalinate were both detected in package bees, which could be a result of the package bee supplier treating bees for mites prior to shipping spring packages. The presence of the herbicide atrazine in package bees is curious, and may have resulted from bees encountering the compound prior to being packaged for sale.

The highest levels of residues found in wax foundation were coumaphos and fluvalinate, which agrees with Mullin et al. [39] and Medici et al. [33]. These products are commonly applied by beekeepers to control Varroa mites. These lipophilic compounds are known to be readily soluble in beeswax [43,44], and remain stable when wax is melted and formed into new foundation sheets [45]. Chlorpyrifos was also detected, but at a much lower level than that found by Mullin et al. [31].

Samples of adult bees and drawn comb were also initially collected from nucleus colonies established in the High-Ag apiary in 2015; however, these samples were accidently destroyed in shipping, and could not be analyzed for residues.

Given that agricultural pesticides were routinely applied to much of the landscape around the apiary, we expected that bees would be exposed to these while foraging, and had potential to transport contaminated nectar or pollen back to the hive. Samples of beeswax, bee bread, honey, and bees were screened for 174 common agricultural pesticides and their metabolites. Of these, only 26 compounds were detected during the two-year study, including one defoliant, one insect growth regulator, five herbicides, six fungicides, six insecticides never used in beekeeping, and five insecticides/miticides and their metabolites which are used in beekeeping and for various other agricultural purposes, as well as two miticides exclusively used by beekeepers to control Varroa destructor. Overall, considering the widespread use of pesticides in the landscape around the apiary at the High-Ag site, bee hive samples contained fairly little contamination. The residues detected in hive samples are summarized in Table 5. A list of the compounds screened, but not detected, is reported in Table 6.

In honey sampled at the High-Ag site, the only contaminants detected were flubendiamide (in 2014) and DMPF (2,4-dimethylphenyl formamide) (in 2015). This agrees with Rissato et al. [46] and Alburaki et al. [47], who also found pesticide concentrations in honey to be very low or undetectable. This is likely because many synthetic pesticides are lipophilic, and readily accumulate in beeswax [44], but are not especially soluble in honey [45]. Also, many foliar-applied insecticides work by contact, and are unlikely to be present in nectar collected by bees. Honey samples from the Low-Ag site contained no detectable residues.

Bee bread collected from hives in the High-Ag apiary contained four compounds in 2014 and three compounds in 2015, but all at low levels. A review by Bogdanov [48] also suggests that pollen (bee bread) is more likely to be contaminated with residues than honey. Bee bread samples from the Low-Ag site contained no detectable residues.

No pesticide residues were detected in adult bee samples in 2014, from either the High-Ag or Low-Ag sites. However, because adult bees are short-lived in the summer, our limited sampling at the end of the season may not have detected applications made earlier. Similarly, in 2015, only beekeeper-applied products were detected in adult bee samples.

New beeswax contained the highest number of detected compounds at both sites, and in both years. New beeswax sampled from the Low-Ag site in 2014 contained the highest number of compounds detected (16). The sources of these contaminants in the Low-Ag landscape are unknown, but were generally well below LD50 values for bees. In new beeswax sampled at the High-Ag site, nine compounds were detected in 2014, and seven compounds were detected in 2015.

In 2015, a high level of the herbicide metolachlor was detected in samples of new beeswax, but not in bee bread or honey. This contamination could have been the result of foraging honey bees in contact with freshly applied material, and spreading it to wax while walking across the comb. Several fungicides were detected, again mostly in beeswax. These are commonly used to control blight and plant diseases in agriculture, and are not presumed to be acutely toxic to honey bees. However, when synergized with other compounds, the combined toxicity may increase [39,49,50]. Also, exposure to fungicides appears to make honey bees more susceptible to the gut pathogen Nosema cerana [51]. Also, acute toxicity is not the only concern of pollinator health. Numerous sublethal effects from exposure to single and multiple pesticides have been noted in recent literature [28,33,52,53,54,55].

The highest levels of residues detected in wax were from products that are primarily applied by beekeepers for Varroa mite control. In 2014, coumaphos and fluvalinate were detected in new beeswax at both sites. Both of these compounds had been detected in foundation wax and package bees at the beginning of the season, but were not applied early to hives during the experiment, and were not likely to be used for any nearby field application. Both of these are known to migrate from contaminated wax [52]. Their presence in newly secreted beeswax suggests that these lipophilic chemicals may have diffused from contaminated foundation or been spread by contact with the bodies of bees. In 2015, wax samples contained residues of products that were applied to colonies. Amitraz had been applied for Varroa control in nucleus colonies prior to purchase, according to the nucleus colony provider. No amitraz was detected in the subsequent sampling of any hive products, but DMA (2,4-dimethyl aniline) and DMPF, which are both breakdown products of amitraz [56], were detected more than six months later in samples of adult bees, capped honey, bee bread, and new beeswax. Also, high levels of thymol were present in adult bees that were sampled after Varroa control application of thymol was made in the late summer. However, thymol was not detected in other hive products. Thymol is a naturally derived essential oil that is obtained from the thyme plant (Thymus vulgaris), and not considered toxic to bees [57], but can affect the flavor of honey if applied before honey is harvested [58].

Absent from the list of detected compounds are any of the neonicotinoid group of insecticides, which have recently received much critical attention for their suspected role in honey bee population declines. Krupke et al. [59] suggested that dust exhausted during planting treated seeds could potentially contaminate nearby wildflowers where bees forage, which was confirmed by Stewart et al. [42]. Dively and Kamel [60] found that neonicotinoid treatments applied as foliar applications or through chemigation resulted in the highest residues in nectar and pollen in cucurbits, while the lowest residues were detected from seed dressings. Furthermore, Meikel et al. [61] found that imidacloprid remained stable in hive products for at least seven months. A worldwide survey of honey as a human food product found very low levels of neonicotinoid contamination, with a mean for positive detections of 1.8 ± 0.56 (SE) ppb [62]. In the current survey, neonicotinoid products were applied as pre-plant seed coatings (i.e., seed treatments) as well as via foliar applications on multiple crops throughout the foraging landscape around the High-Ag apiary site. Despite their widespread use in this landscape, we did not detect any neonicotinoids in our samples. However, our sampling was limited to the end of the growing season, when residues from early season treatments or other sporadic applications may not have been detectable.

4. Conclusions

Honey bees forage over an extensive area for the nectar and pollen they utilize as food. In agricultural landscapes, there is great potential for pesticide exposure of honey bees in the field, and for contamination of the hive and hive products. The Arkansas survey of area growers, although most certainly incomplete in documenting all pesticide applications, confirms that multiple products, in multiple chemical classes, are applied to the agricultural landscape routinely throughout the season as part of conventional agricultural production.

Despite the widespread use of these chemicals, both hobbyist and commercial beekeepers continue to maintain productive honey bee colonies in intensive agricultural areas [22]. Furthermore, colony productivity has been shown to increase with proximity to crop land [27], and research has also shown that mass flowering crops can benefit wild and managed bees, despite other risks posed by agricultural practices and land management [63,64,65].

The results of our limited investigation are consistent with other studies. Similar to Mullin et al. [31], who conducted one of the broadest and most geographically diverse studies, we found that the highest concentrations of detectable compounds were a result of beekeeper-applied products. These products, by design, have low toxicity relative to the dose required for adverse effects. To a lesser degree, fungicides and herbicides also have low general toxicity to honey bees, but are known to have synergistic effects with other pesticides, which increase the toxicity of one or more of the compounds [50,66,67]. The increasing buildup of pesticide contamination in combs over time can adversely affect honey bee health and survivorship [68,69,70]. Chronic exposure to sublethal levels of pesticides can impact honey bee health and immune response [51,71]. Pesticides are rarely, if ever, encountered individually, but more often simultaneously with others [39]. Efforts have been made to explore the toxicity of combinations of pesticides that are often found together [49,50,70,71].

Recent declines in honey bee populations cannot be attributed to any one single cause, but are likely the result of accumulated stresses from multiple causes [53]. The complex of the mite Varroa destructor (Anderson and Trueman) and the viruses they vector continues to be the greatest threat to honey bee health [72,73]. Other pathogens such as Nosema ceranae also affect honey bee health, productivity, and survivorship [74]. Additionally, bees must have access to adequate nutrition from floral resources in order to maintain health [75]. Most likely, a combination of multiple factors, including these and others, are responsible for recent declines in honey bee health and populations [53,76]. Optimal management of honey bee colonies must include a reduction of multiple stress factors, including sublethal exposure to pesticides, and discussions of honey bee health should not be limited to a narrow focus on pesticide exposure.

To expand upon this work, a similar survey could be conducted that includes records on the timing, formulations, and rates of pesticide applications for specific crop fields, and more frequent sampling through the season to more precisely determine when contaminants may be entering beehives, and how long particular applications may pose specific risks to bee colonies.

Author Contributions

D.R.J. and J.Z. and conceived and designed the experiment; J.A. and G.L. participated in the experimental design and provided material support; D.R.J., J.Z., and Q.H. performed the experiment and collected the data; J.B. prepared GIS data and figures; D.R.J. and J.Z. analyzed and interpreted the data; J.Z. wrote the manuscript; J.A., S.D.S., and N.J. revised it; All the authors discussed the data and approved the results of this study.

Funding

This research was partially funded by USDA, ARS cooperative agreement # 6404-21430-001-19S and the USDA, ARS Areawide Pest Management Project, "Determining the Impact of Commonly Used Southern Row Crop Pesticides on Honey Bee Colony Health" FY14-15.

Acknowledgments

The authors wish to thank Ples Spradley and Elmer Wilman, Jr. for hosting experimental hives on their property, as well as Tyler Fields for his assistance with apiary work. We are also grateful to the USDA-ARS for help in funding this study.

Conflicts of Interest

The authors declare no competing financial interests.

References

  1. Visscher, P.K.; Seeley, T.D. Foraging Strategy of Honeybee Colonies in a Temperate Deciduous Forest. Ecology 1982, 63, 1790. [Google Scholar] [CrossRef]
  2. Hagler, J.R.; Mueller, S.; Teuber, L.R.; Machtley, S.A.; van Deynze, A. Foraging Range of Honey Bees, Apis mellifera, in Alfalfa Seed Production Fields. J. Insect Sci. 2011, 11, 1–12. [Google Scholar] [CrossRef] [PubMed]
  3. Steffan-Dewenter, I.; Kuhn, A. Honeybee foraging in differentially structured landscapes. Proc. R. Soc. B Boil. Sci. 2003, 270, 569–575. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Couvillon, M.J.; Pearce, F.C.R.; Accleton, C.; Fensome, K.A.; Quah, S.K.; Taylor, E.L.; Ratnieks, F.L. Honey bee foraging distance depends on month and forage type. Apidologie 2015, 46, 61–70. [Google Scholar] [CrossRef]
  5. Beekman, M.; Ratnieks, F.L.W. Long-range foraging by the honey-bee, Apis mellifera L. Funct. Ecol. 2000, 14, 490–496. [Google Scholar] [CrossRef]
  6. Waddington, K.D. Honey bee foraging profitability and round dance correlates. J. Comp. Physiol. A 1982, 148, 297–301. [Google Scholar] [CrossRef]
  7. Cook, S.M.; Awmack, C.S.; Murray, D.A.; Williams, I.H. Are honey bees' foraging preferences affected by pollen amino acid composition? Ecol. Entomol. 2003, 28, 622–627. [Google Scholar] [CrossRef]
  8. Hendriksma, H.P.; Shafir, S. Honey bee foragers balance colony nutritional deficiencies. Behav. Ecol. Sociobiol. 2016, 70, 509–517. [Google Scholar] [CrossRef]
  9. Schiestl, F.P.; Johnson, S.D. Pollinator-mediated evolution of floral signals. Trends Ecol. Evol. 2013, 28, 307–315. [Google Scholar] [CrossRef]
  10. Greenleaf, S.S.; Williams, N.M.; Winfree, R.; Kremen, C. Bee foraging ranges and their relationship to body size. Oecologia 2007, 153, 589–596. [Google Scholar] [CrossRef]
  11. Levin, D.A. Dispersal versus gene flow in plants. Ann. Mo. Bot. Gard. 1981, 68, 233. [Google Scholar] [CrossRef]
  12. Gillespie, M.A.; Gurr, G.M.; Wratten, S.D. Beyond nectar provision: The other resource requirements of parasitoid biological control agents. Entomol. Exp. Appl. 2016, 159, 207–221. [Google Scholar] [CrossRef]
  13. Heidel-Baker, T.T.; O'Neal, M.E.; Batzer, J.C.; Gleason, M.L. Attracting Beneficial Insects to Iowa Agricultural Crops through Floral Provisioning; Iowa State University: Ames, IA, USA, 2014. [Google Scholar]
  14. Ramsden, M.W.; Menéndez, R.; Leather, S.R.; Wäckers, F. Optimizing field margins for biocontrol services: The relative role of aphid abundance, annual floral resources, and overwinter habitat in enhancing aphid natural enemies. Agric. Ecosyst. Environ. 2015, 199, 94–104. [Google Scholar] [CrossRef]
  15. Calderone, N.W. Insect Pollinated Crops, Insect Pollinators and US Agriculture: Trend Analysis of Aggregate Data for the Period 1992–2009. PLoS ONE 2012, 7, e37235. [Google Scholar] [CrossRef] [PubMed]
  16. McGregor, S.E. Insect Pollination of Cultivated Crop Plants; Agricultural Research Service: Washington, DC, USA; US Department of Agriculture: Washington, DC, USA, 1976; Volume 496.
  17. Severson, D.W.; Parry, J.E. A Chronology of Pollen Collection by Honeybees. J. Apic. Res. 1981, 20, 97–103. [Google Scholar] [CrossRef]
  18. Erickson, E.H.; Berger, G.A.; Shannon, J.G.; Robins, J.M. Honey Bee Pollination Increases Soybean Yields in the Mississippi Delta Region of Arkansas and Missouri. J. Econ. Entomol. 1978, 71, 601–603. [Google Scholar] [CrossRef]
  19. Chiari, W.C.; Toledo, V.D.A.A.D.; Ruvolo-Takasusuki, M.C.C.; Oliveira, A.J.B.D.; Sakaguti, E.S.; Attencia, V.M.; Costa, F.M.; Mitsui, M.H. Pollination of soybean (Glycine max L. Merril) by honeybees (Apis mellifera L.). Braz. Arch. Biol. Technol. 2005, 48, 31–36. [Google Scholar] [CrossRef]
  20. Abrol, D.; Shankar, U. Pollination in oil crops: Recent advances and future strategies. In Technological Innovations in Major World Oil Crops; Springer: Berlin, Germany, 2012; Volume 2, pp. 221–267. [Google Scholar]
  21. Milfont, M.D.O.; Rocha, E.E.M.; Lima, A.O.N.; Freitas, B.M. Higher soybean production using honeybee and wild pollinators, a sustainable alternative to pesticides and autopollination. Environ. Chem. Lett. 2013, 11, 335–341. [Google Scholar] [CrossRef]
  22. Coy, R.; (Commercial Beekeeper, Jonesboro, AR, USA). Personal communications, 2016.
  23. Smith, T.; Catchot, A.L.; Harris, J.W.; Gore, J.; Krishnan, N.; Cook, D. Influence of cultural practices on soybean nectar production. In Proceedings of the Entomological Society of America Conference, Denver, CO, USA, 8 November 2017. [Google Scholar]
  24. Shuel, R.W. Some Factors Affecting Nectar Secretion in Red Clover. Plant. Physiol. 1952, 27, 95–110. [Google Scholar] [CrossRef][Green Version]
  25. Requier, F.; Odoux, J.-F.; Tamic, T.; Moreau, N.; Henry, M.; Decourtye, A.; Bretagnolle, V. Honey bee diet in intensive farmland habitats reveals an unexpectedly high flower richness and a major role of weeds. Ecol. Appl. 2015, 25, 881–890. [Google Scholar] [CrossRef][Green Version]
  26. Di Pasquale, G.; Salignon, M.; Le Conte, Y.; Belzunces, L.P.; Decourtye, A.; Kretzschmar, A.; Suchail, S.; Brunet, J.L.; Alaux, C. Influence of pollen nutrition on honey bee health: Do pollen quality and diversity matter? PLoS ONE 2013, 8, e72016. [Google Scholar] [CrossRef] [PubMed]
  27. Sponsler, D.B.; Johnson, R.M. Honey bee success predicted by landscape composition in Ohio, USA. PeerJ 2015, 3, 838. [Google Scholar] [CrossRef] [PubMed]
  28. Desneux, N.; Decourtye, A.; Delpuech, J.-M. The Sublethal Effects of Pesticides on Beneficial Arthropods. Annu. Rev. Entomol. 2007, 52, 81–106. [Google Scholar] [CrossRef] [PubMed]
  29. Johnson, R.M.; Ellis, M.D.; Mullin, C.A.; Frazier, M. Pesticides and honey bee toxicity—USA. Apidologie 2010, 41, 312–331. [Google Scholar] [CrossRef]
  30. Blacquière, T.; Smagghe, G.; Van Gestel, C.A.M.; Mommaerts, V. Neonicotinoids in bees: A review on concentrations, side-effects and risk assessment. Ecotoxicology 2012, 21, 973–992. [Google Scholar] [CrossRef] [PubMed]
  31. Lundin, O.; Rundlöf, M.; Smith, H.G.; Fries, I.; Bommarco, R. Neonicotinoid Insecticides and Their Impacts on Bees: A Systematic Review of Research Approaches and Identification of Knowledge Gaps. PLoS ONE 2015, 10, e0136928. [Google Scholar] [CrossRef] [PubMed]
  32. Rortais, A.; Arnold, G.; Halm, M.-P.; Touffet-Briens, F. Modes of honeybees exposure to systemic insecticides: Estimated amounts of contaminated pollen and nectar consumed by different categories of bees. Apidologie 2005, 36, 71–83. [Google Scholar] [CrossRef]
  33. Dively, G.P.; Embrey, M.S.; Kamel, A.; Hawthorne, D.J.; Pettis, J.S. Correction: Assessment of Chronic Sublethal Effects of Imidacloprid on Honey Bee Colony Health. PLoS ONE 2015, 10, e0126043. [Google Scholar] [CrossRef]
  34. Laycock, I.; Lenthall, K.M.; Barratt, A.T.; Cresswell, J.E. Effects of imidacloprid, a neonicotinoid pesticide, on reproduction in worker bumble bees (Bombus terrestris). Ecotoxicology 2012, 21, 1937–1945. [Google Scholar] [CrossRef]
  35. Whitehorn, P.; O'Connor, S.; Wäckers, F.L.; Goulson, D.; O'Connor, S. Neonicotinoid Pesticide Reduces Bumble Bee Colony Growth and Queen Production. Science 2012, 336, 351–352. [Google Scholar] [CrossRef][Green Version]
  36. Cumming, G.S.; Spiesman, B.J. Regional problems need integrated solutions: Pest management and conservation biology in agroecosystems. Boil. Conserv. 2006, 131, 533–543. [Google Scholar] [CrossRef]
  37. Chauzat, M.-P.; Faucon, J.-P.; Martel, A.-C.; Lachaize, J.; Cougoule, N.; Aubert, M. A Survey of Pesticide Residues in Pollen Loads Collected by Honey Bees in France. J. Econ. Entomol. 2006, 99, 253–262. [Google Scholar] [CrossRef] [PubMed]
  38. Bernal, J.L.; Garrido-Bailon, E.; Del Nozal, J.B.; González-Porto, A.V.; Hernández, R.M.; Diego, J.C.; Jimenez, J.J.; Higes, M. Overview of Pesticide Residues in Stored Pollen and Their Potential Effect on Bee Colony (Apis mellifera) Losses in Spain. J. Econ. Entomol. 2010, 103, 1964–1971. [Google Scholar] [CrossRef] [PubMed]
  39. Mullin, C.A.; Frazier, M.; Frazier, J.L.; Ashcraft, S.; Simonds, R.; Pettis, J.S. High levels of miticides and agrochemicals in North American apiaries: Implications for honey bee health. PLoS ONE 2010, 5, e9754. [Google Scholar] [CrossRef] [PubMed]
  40. Codling, G.; Al Naggar, Y.; Giesy, J.P.; Robertson, A.J. Concentrations of neonicotinoid insecticides in honey, pollen and honey bees (Apis mellifera L.) in central Saskatchewan, Canada. Chemosphere 2016, 144, 2321–2328. [Google Scholar] [CrossRef]
  41. Pasture, Fall Armyworm. In Insecticide Recommendations for Arkansas, MP-144; University of Arkansas Systems Division of Agriculture: Little Rock, AR, USA, 2018; Available online: https://www.uaex.edu/publications/pdf/mp144/mp144.pdf (accessed on 18 June 2018).
  42. Stewart, S.D.; Lorenz, G.M.; Catchot, A.L.; Gore, J.; Cook, D.; Skinner, J.; Mueller, T.C.; Johnson, D.R.; Zawislak, J.; Barber, J. Potential Exposure of Pollinators to Neonicotinoid Insecticides from the Use of Insecticide Seed Treatments in the Mid-Southern United States. Environ. Sci. Technol. 2014, 48, 9762–9769. [Google Scholar] [CrossRef]
  43. Medici, S.K.; Castro, A.; Sarlo, E.G.; Marioli, J.M.; Eguaras, M.J. The concentration effect of selected acaricides present in beeswax foundation on the survival of Apis mellifera colonies. J. Apic. Res. 2012, 51, 164–168. [Google Scholar] [CrossRef]
  44. Korta, E.; Bakkali, A.; Berrueta, L.A.; Gallo, B.; Vicente, F.; Kilchenmann, V.; Bogdanov, S. Study of Acaricide Stability in Honey. Characterization of Amitraz Degradation Products in Honey and Beeswax. J. Agric. Food Chem. 2001, 49, 5835–5842. [Google Scholar] [CrossRef]
  45. Bajuk, B.P.; Babnik, K.; Snoj, T.; Milčinski, L.; Ocepek, M.P.; Škof, M.; Jenčič, V.; Štajnbaher, D.; Kobal, S.; Filazi, A. Coumaphos residues in honey, bee brood, and beeswax after Varroa treatment. Apidologie 2017, 37, 57–598. [Google Scholar]
  46. Rissato, S.R.; Galhiane, M.S.; De Almeida, M.V.; Gerenutti, M.; Apon, B.M. Multiresidue determination of pesticides in honey samples by gas chromatography–mass spectrometry and application in environmental contamination. Food Chem. 2007, 101, 1719–1726. [Google Scholar] [CrossRef]
  47. Alburaki, M.; Chen, D.; Skinner, J.A.; Meikle, W.G.; Tarpy, D.R.; Adamczyk, J.; Stewart, S.D. Honey Bee Survival and Pathogen Prevalence: From the Perspective of Landscape and Exposure to Pesticides. Insects 2018, 9, 65. [Google Scholar] [CrossRef] [PubMed]
  48. Bogdanov, S. Contaminants of bee products. Apidologie 2006, 37, 1–18. [Google Scholar] [CrossRef]
  49. Thompson, H.M.; Fryday, S.L.; Harkin, S.; Milner, S. Potential impacts of synergism in honeybees (Apis mellifera) of exposure to neonicotinoids and sprayed fungicides in crops. Apidologie 2014, 45, 545–553. [Google Scholar] [CrossRef]
  50. Johnson, R.M.; Dahlgren, L.; Siegfried, B.D.; Ellis, M.D. Acaricide, Fungicide and Drug Interactions in Honey Bees (Apis mellifera). PLoS ONE 2013, 8, e54092. [Google Scholar] [CrossRef] [PubMed]
  51. Pettis, J.S.; Lichtenberg, E.M.; Andree, M.; Stitzinger, J.; Rose, R. Crop pollination exposes honey bees to pesticides which alters their susceptibility to the gut pathogen Nosema ceranae. PLoS ONE 2013, 8, e70182. [Google Scholar] [CrossRef] [PubMed]
  52. Yang, E.C.; Chuang, Y.C.; Chen, Y.L.; Chang, L.H. Abnormal foraging behavior induced by sublethal dosage of imidacloprid in the honey bee (Hymenoptera: Apidae). J. Econ. Entomol. 2008, 101, 1743–1748. [Google Scholar] [CrossRef] [PubMed]
  53. Bryden, J.; Gill, R.J.; Mitton, R.A.A.; Raine, N.E.; Jansen, V.A.; Hodgson, D. Chronic sublethal stress causes bee colony failure. Ecol. Lett. 2013, 16, 1463–1469. [Google Scholar] [CrossRef][Green Version]
  54. Tosi, S.; Burgio, G.; Nieh, J.C. A common neonicotinoid pesticide, thiamethoxam, impairs honey bee flight ability. Sci. Rep. 2017, 7, 303. [Google Scholar] [CrossRef]
  55. Wu, J.Y.; Anelli, C.M.; Sheppard, W.S. Sub-Lethal Effects of Pesticide Residues in Brood Comb on Worker Honey Bee (Apis mellifera) Development and Longevity. PLoS ONE 2011, 6, e14720. [Google Scholar] [CrossRef]
  56. Corta, E. Kinetics and mechanism of amitraz hydrolysis in aqueous media by HPLC and GC-MS. Talanta 1999, 48, 189–199. [Google Scholar] [CrossRef]
  57. Vita Bee Health. Apiguard Product Label. Valdosta, GA 31603. Available online: https://www3.epa.gov/pesticides/chem_search/ppls/079671-00001-20141007.pdf (accessed on 18 June 2018).
  58. Véto-pharma, Inc. ApiLifeVar Product Label. Palaiseau, France 91120. Available online: https://www3.epa.gov/pesticides/chem_search/ppls/073291-00001-20190521.pdf (accessed on 18 June 2018).
  59. Krupke, C.H.; Hunt, G.J.; Eitzer, B.D.; Andino, G.; Given, K. Multiple Routes of Pesticide Exposure for Honey Bees Living Near Agricultural Fields. PLoS ONE 2012, 7, e29268. [Google Scholar] [CrossRef] [PubMed]
  60. Dively, G.P.; Kamel, A. Insecticide Residues in Pollen and Nectar of a Cucurbit Crop and Their Potential Exposure to Pollinators. J. Agric. Food Chem. 2012, 60, 4449–4456. [Google Scholar] [CrossRef] [PubMed]
  61. Meikle, W.G.; Adamczyk, J.J.; Weiss, M.; Gregorc, A.; Johnson, D.R.; Stewart, S.D.; Zawislak, J.; Carroll, M.J.; Lorenz, G.M. Sublethal Effects of Imidacloprid on Honey Bee Colony Growth and Activity at Three Sites in the US. PLoS ONE 2016, 11, e0168603. [Google Scholar] [CrossRef] [PubMed]
  62. Mitchell, E.A.D.; Mulhauser, B.; Mulot, M.; Mutabazi, A.; Glauser, G.; Aebi, A. A worldwide survey of neonicotinoids in honey. Science 2017, 358, 109–111. [Google Scholar] [CrossRef] [PubMed][Green Version]
  63. Westphal, C.; Steffan-Dewenter, I.; Tscharntke, T. Mass flowering crops enhance pollinator densities at a landscape scale. Ecol. Lett. 2003, 6, 961–965. [Google Scholar] [CrossRef]
  64. Le Féon, V.; Schermann-Legionnet, A.; Delettre, Y.; Aviron, S.; Billeter, R.; Bugter, R.; Hendrickx, F.; Burel, F. Intensification of agriculture, landscape composition and wild bee communities: A large scale study in four European countries. Agric. Ecosyst. Environ. 2010, 137, 143–150. [Google Scholar] [CrossRef]
  65. Holzschuh, A.; Dormann, C.F.; Tscharntke, T.; Steffan-Dewenter, I. Mass-flowering crops enhance wild bee abundance. Oecologia 2013, 172, 477–484. [Google Scholar] [CrossRef]
  66. Pilling, E.D.; Jepson, P.C. Synergism between EBI fungicides and a pyrethroid insecticide in the honeybee (Apis mellifera). Pestic. Sci. 1993, 39, 293–297. [Google Scholar] [CrossRef]
  67. Thompson, H.; Wilkins, S. Assessment of the synergy and repellency of pyrethroid/fungicide mixtures. Bull. Insectol. 2003, 56, 131–134. [Google Scholar]
  68. Haarmann, T.; Spivak, M.; Weaver, D.; Weaver, B.; Glenn, T. Effects of Fluvalinate and Coumaphos on Queen Honey Bees (Hymenoptera: Apidae) in Two Commercial Queen Rearing Operations. J. Econ. Entomol. 2002, 95, 28–35. [Google Scholar] [CrossRef]
  69. Di Prisco, G.; Cavaliere, V.; Annoscia, D.; Varricchio, P.; Caprio, E.; Nazzi, F.; Gargiulo, G.; Pennacchio, F. Neonicotinoid clothianidin adversely affects insect immunity and promotes replication of a viral pathogen in honey bees. Proc. Natl. Acad. Sci. USA 2013, 110, 18466–18471. [Google Scholar] [CrossRef] [PubMed][Green Version]
  70. Zhu, W.; Schmehl, D.R.; Mullin, C.A.; Frazier, J.L. Four Common Pesticides, Their Mixtures and a Formulation Solvent in the Hive Environment Have High Oral Toxicity to Honey Bee Larvae. PLoS ONE 2014, 9, e77547. [Google Scholar] [CrossRef] [PubMed]
  71. Johnson, R.M. Honey Bee Toxicology. Annu. Rev. Entomol. 2015, 60, 415–434. [Google Scholar] [CrossRef] [PubMed][Green Version]
  72. Rosenkranz, P.; Aumeier, P.; Ziegelmann, B. Biology and control of Varroa destructor. J. Invertebr. Pathol. 2010, 103, S96–S119. [Google Scholar] [CrossRef] [PubMed]
  73. Guzman-Novoa, E.; Eccles, L.; Calvete, Y.; Mcgowan, J.; Kelly, P.G.; Correa-Benítez, A. Varroa destructor is the main culprit for the death and reduced populations of overwintered honey bee (Apis mellifera) colonies in Ontario, Canada. Apidologie 2010, 41, 443–450. [Google Scholar] [CrossRef]
  74. Chen, Y.; Evans, J.D.; Smith, I.B.; Pettis, J.S. Nosema ceranae is a long-present and wide-spread microsporidian infection of the European honey bee (Apis mellifera) in the United States. J. Invertebr. Pathol. 2008, 97, 186–188. [Google Scholar] [CrossRef] [PubMed]
  75. Alaux, C.; Ducloz, F.; Crauser, D.; Le Conte, Y. Diet effects on honeybee immunocompetence. Boil. Lett. 2010, 6, 562–565. [Google Scholar] [CrossRef][Green Version]
  76. Vanengelsdorp, D.; Evans, J.D.; Saegerman, C.; Mullin, C.; Haubruge, E.; Nguyen, B.K.; Frazier, M.; Frazier, J.; Cox-Foster, D.; Chen, Y.; et al. Colony Collapse Disorder: A Descriptive Study. PLoS ONE 2009, 4, e6481. [Google Scholar] [CrossRef]

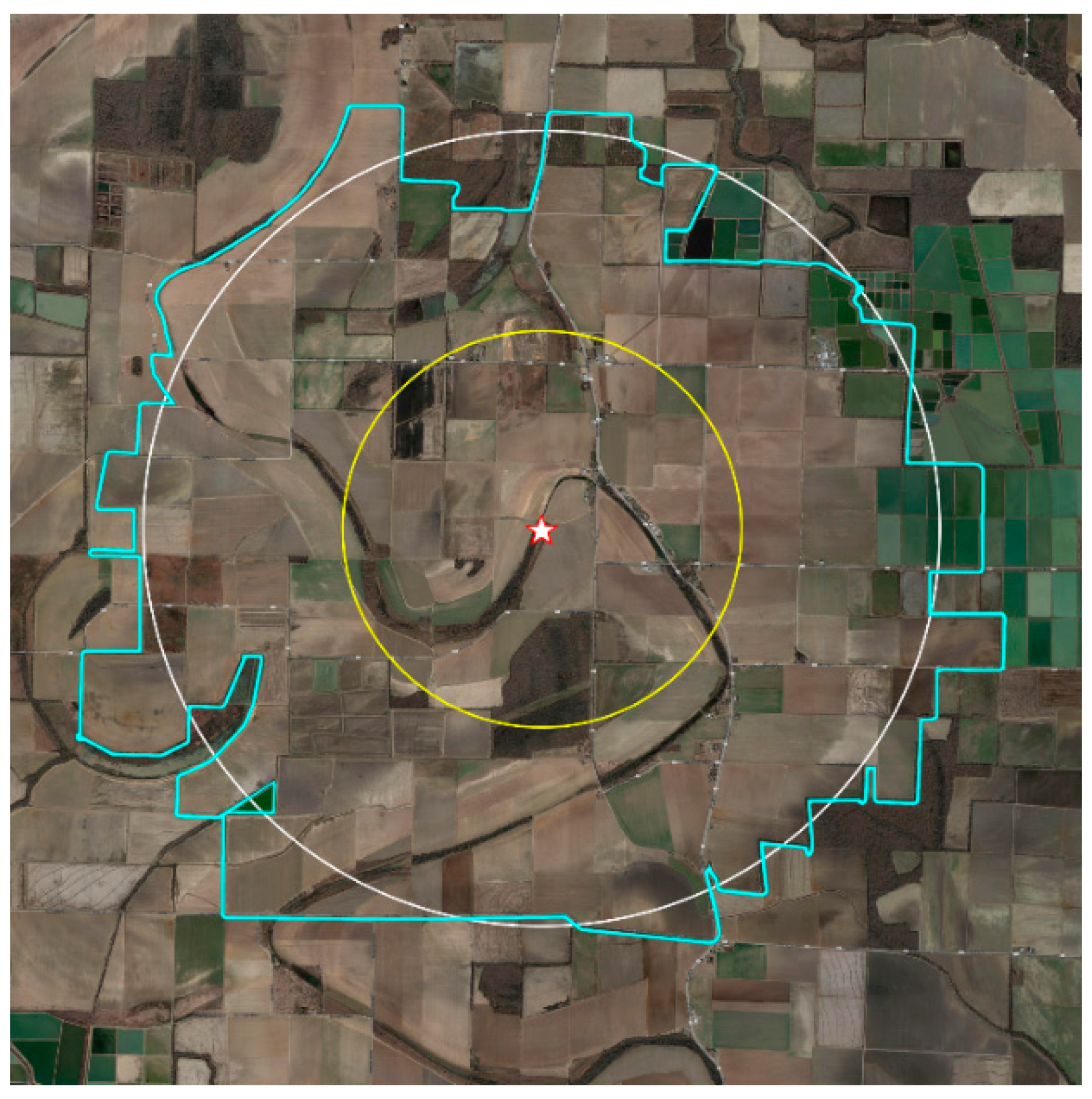

Figure 1. Aerial view of the High-Ag study site in Lonoke County, Arkansas. The star indicates the apiary location. The yellow circle indicates a one-mile radius from the beehives; the white circle indicates a two-mile radius from the hives; the blue line indicates the approximate area included in the survey. Landscape included the commercial production of soybeans, corn, rice, cotton, grain sorghum, and green beans, as well as commercial fish ponds, woodlands, grasslands, wetlands, and fallow fields. This site is representative of agricultural production land in this region (data: Google, Landsat/Copernicus, Maxar Technologies, US Geological Survey).

Figure 1. Aerial view of the High-Ag study site in Lonoke County, Arkansas. The star indicates the apiary location. The yellow circle indicates a one-mile radius from the beehives; the white circle indicates a two-mile radius from the hives; the blue line indicates the approximate area included in the survey. Landscape included the commercial production of soybeans, corn, rice, cotton, grain sorghum, and green beans, as well as commercial fish ponds, woodlands, grasslands, wetlands, and fallow fields. This site is representative of agricultural production land in this region (data: Google, Landsat/Copernicus, Maxar Technologies, US Geological Survey).

Insects 10 00280 g001

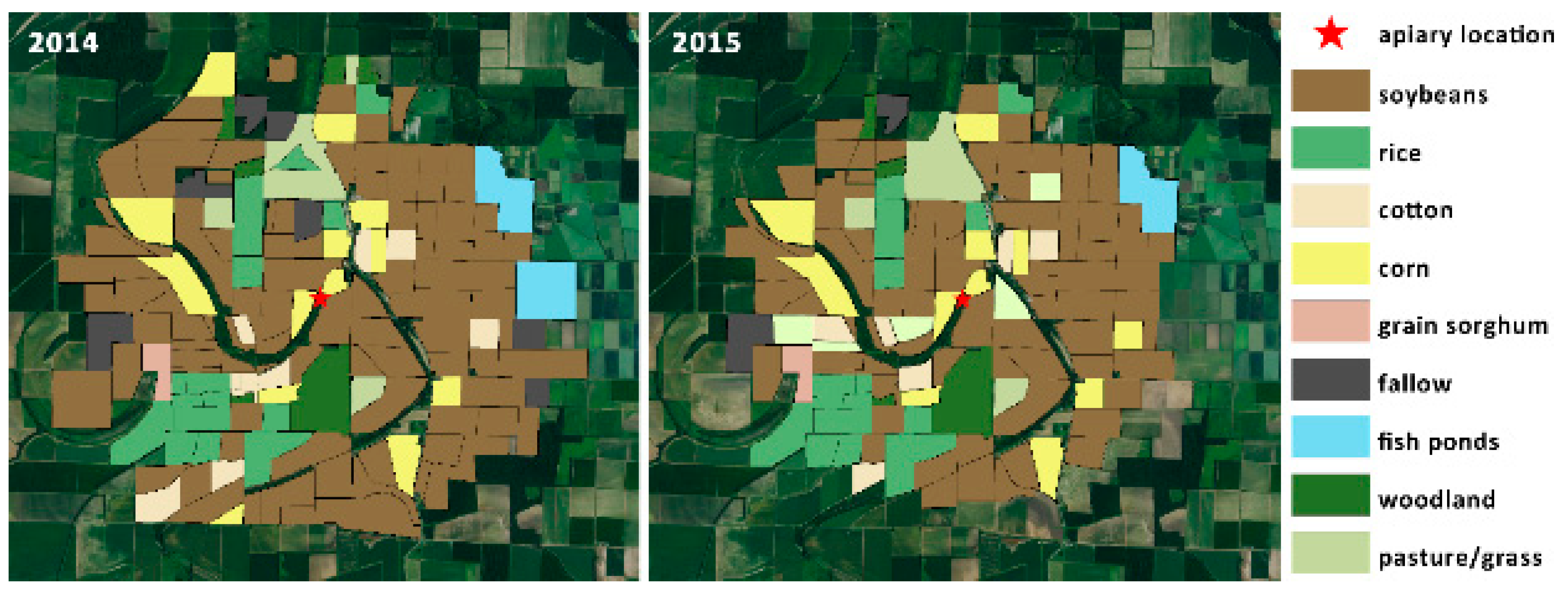

Figure 2. Land use by crop within the surveyed area around the High-Ag site during the 2014 and 2015 growing seasons. The survey area was slightly different between years due to changes in land use and an inability to contact farmers for interviews regarding all fields. However, general patterns of land use and crop production remained similar in the landscape around the apiary during both years.

Figure 2. Land use by crop within the surveyed area around the High-Ag site during the 2014 and 2015 growing seasons. The survey area was slightly different between years due to changes in land use and an inability to contact farmers for interviews regarding all fields. However, general patterns of land use and crop production remained similar in the landscape around the apiary during both years.

Insects 10 00280 g002

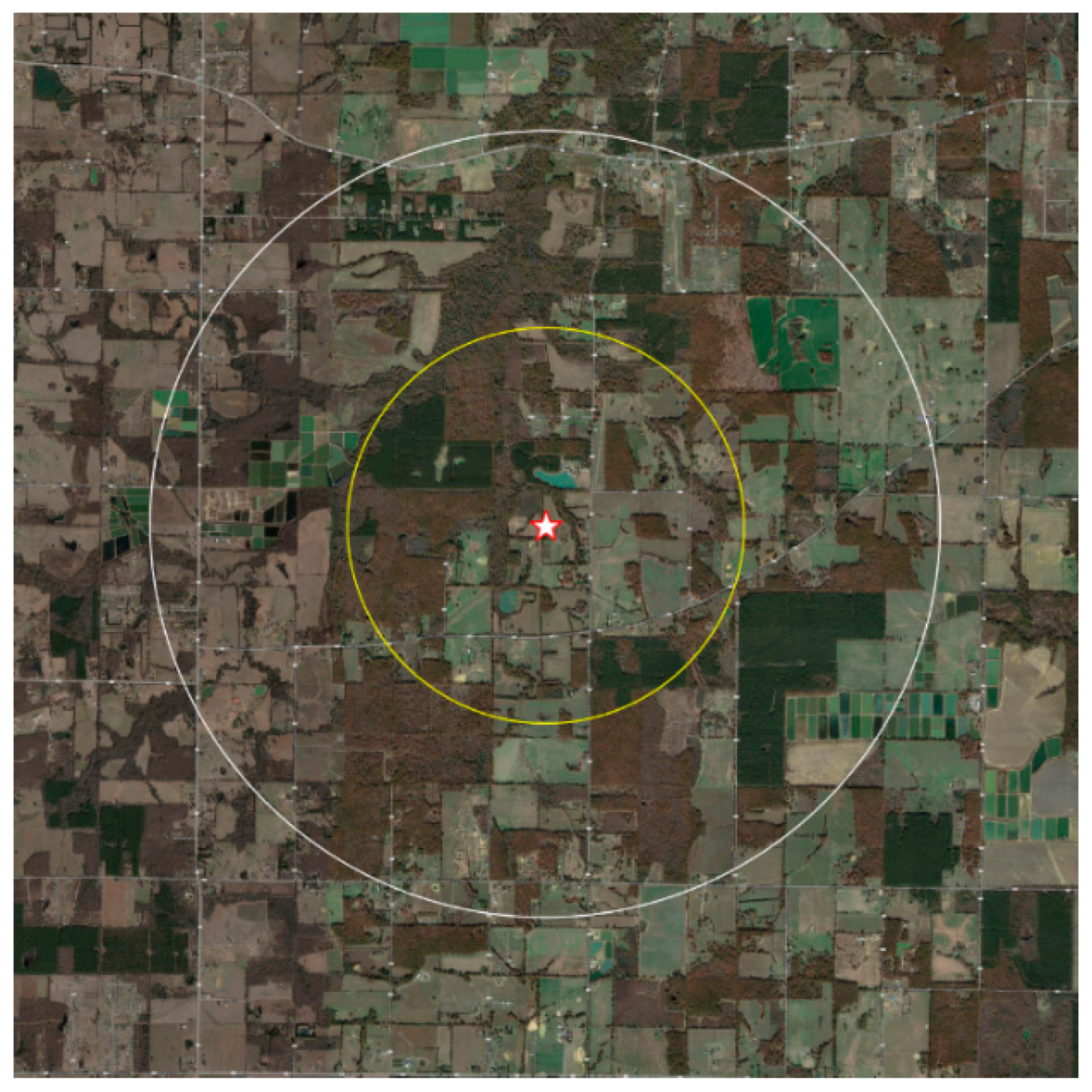

Figure 3. Aerial view of the Low-Ag study site, Lonoke County, Arkansas. The star indicates the apiary location. The yellow circle indicates a one-mile radius from the beehives; the white circle indicates a two-mile radius from the hives. The landscape included a diverse mixture of pasture, woodlands, commercial fish farming, residential gardens, and a few small fruit or orchard operations, but no significant row crop agriculture near the apiary site (data: Google, Maxar Technologies, State of Arkansas, USDA Farm Services Agency).

Figure 3. Aerial view of the Low-Ag study site, Lonoke County, Arkansas. The star indicates the apiary location. The yellow circle indicates a one-mile radius from the beehives; the white circle indicates a two-mile radius from the hives. The landscape included a diverse mixture of pasture, woodlands, commercial fish farming, residential gardens, and a few small fruit or orchard operations, but no significant row crop agriculture near the apiary site (data: Google, Maxar Technologies, State of Arkansas, USDA Farm Services Agency).

Insects 10 00280 g003

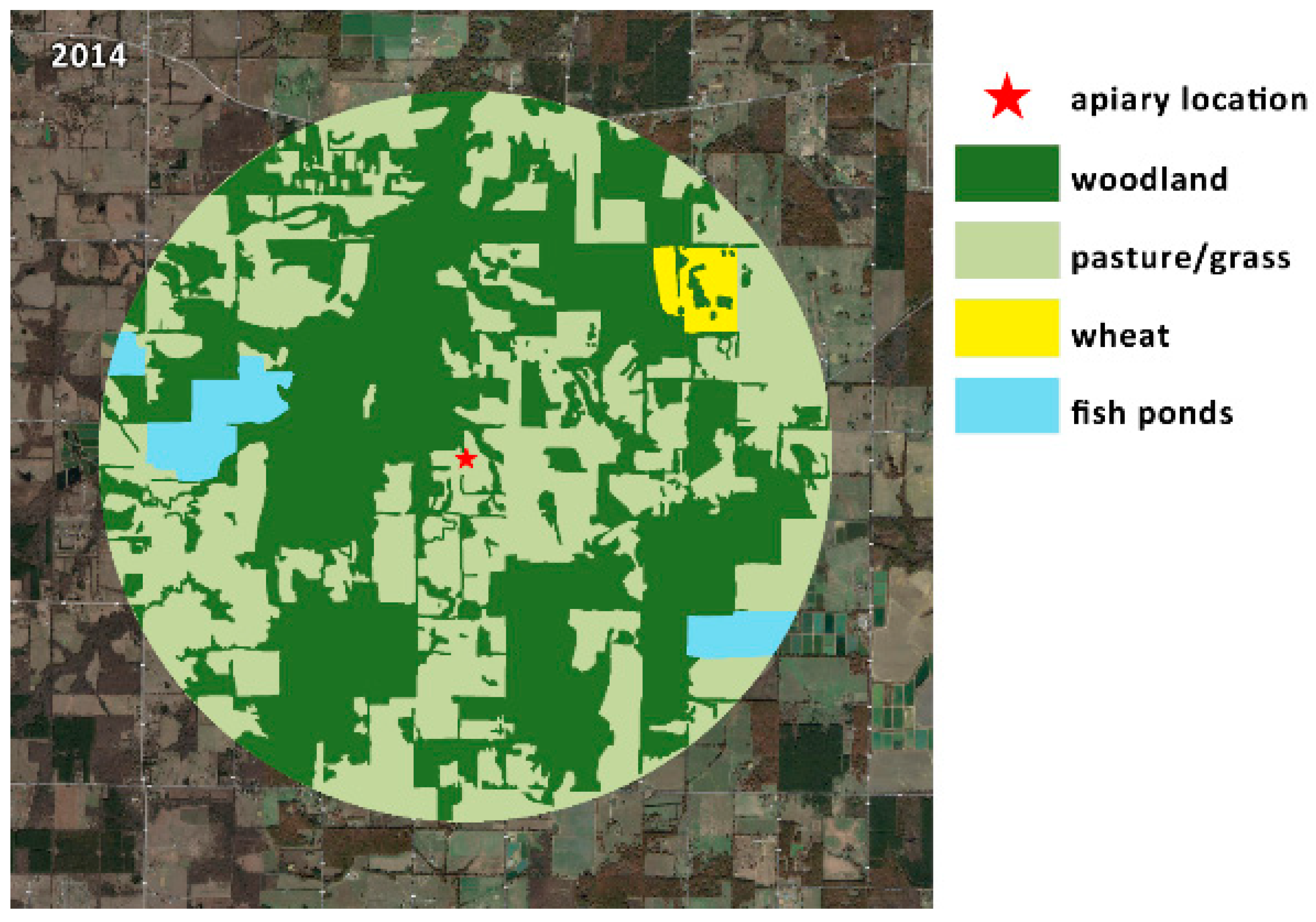

Figure 4. Dominant land use within a two-mile radius around the Low-Ag site in 2014. This landscape was primarily composed of woodland and grassland/pasture, with a small area of wheat, and some commercial fish farming.

Figure 4. Dominant land use within a two-mile radius around the Low-Ag site in 2014. This landscape was primarily composed of woodland and grassland/pasture, with a small area of wheat, and some commercial fish farming.

Insects 10 00280 g004

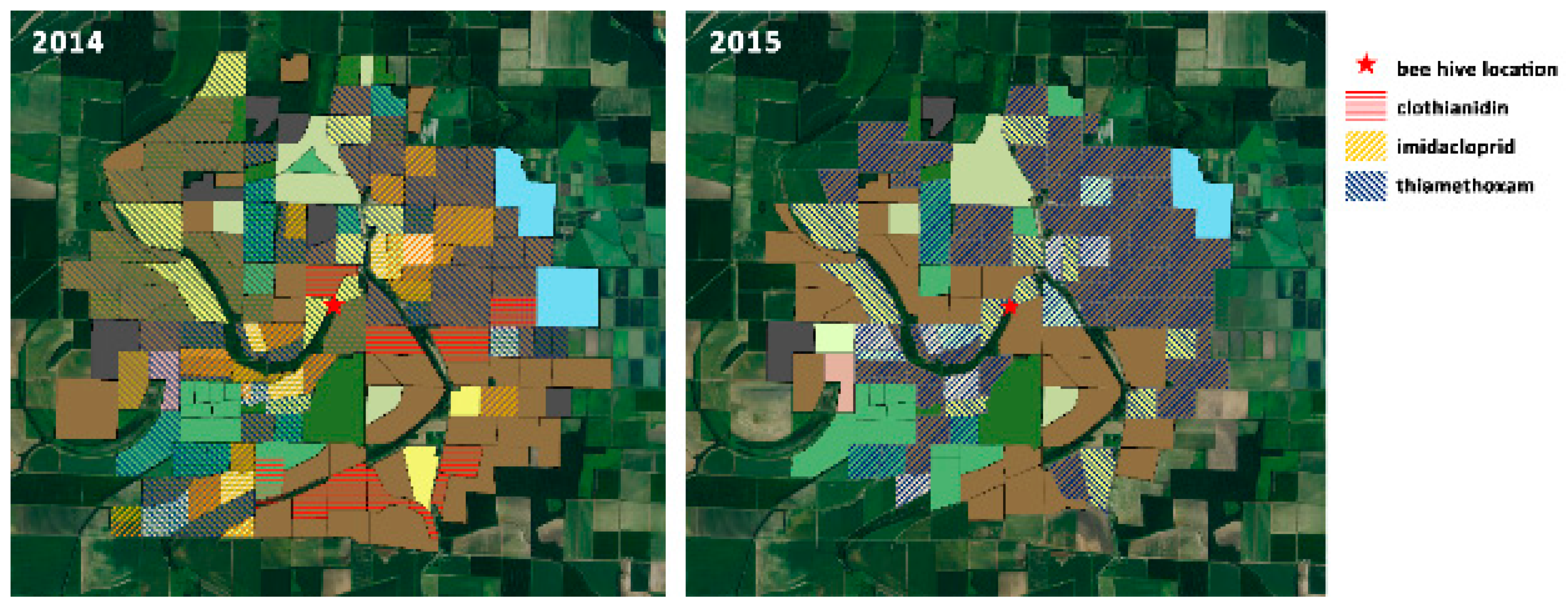

Figure 5. Reported distribution of neonicotinoid insecticides applied as seed treatments within the High-Ag survey area during the 2014 and 2015 growing seasons.

Figure 5. Reported distribution of neonicotinoid insecticides applied as seed treatments within the High-Ag survey area during the 2014 and 2015 growing seasons.

Insects 10 00280 g005

Figure 6. Reported distribution of foliar applied pesticides in the surveyed area within the High-Ag survey area during the 2014 and 2015 growing seasons.

Figure 6. Reported distribution of foliar applied pesticides in the surveyed area within the High-Ag survey area during the 2014 and 2015 growing seasons.

Insects 10 00280 g006

Table 1. Summary of land use within the High-Ag survey site in 2014–2015. This site included all the agricultural fields within approximately two miles of the apiary location. Areas of crop fields that extended outside of a two-mile radius were included in the survey.

Table 1. Summary of land use within the High-Ag survey site in 2014–2015. This site included all the agricultural fields within approximately two miles of the apiary location. Areas of crop fields that extended outside of a two-mile radius were included in the survey.

Land Use Total Acreage % Acreage
2014 2015 2014 2015 2-Year Average
Soybean 7489 5285 61.6 52.5 57.1
Rice 1110 1088 9.1 10.8 10
Corn 1005 849 8.3 8.4 8.4
Cotton 443 317 3.6 3.2 3.4
Grain Sorghum 92 91 0.8 0.9 0.9
Green Beans 0 306 0 3 1.5
Total Crop Acreage 10,139 7936 83.4 78.9 81.2
Fish Ponds 396 396 3.9 3.9 3.9
Uncultivated Land 1625 1731 12.7 17.2 15
Total Acreage 12,160 10,063 100 100 100

Table 2. Reported acreage receiving pesticide application, by crop, within the High-Ag survey area during the 2014 and 2015 growing seasons.

Table 2. Reported acreage receiving pesticide application, by crop, within the High-Ag survey area during the 2014 and 2015 growing seasons.

Year Pesticide Class * Number of Acres of Each Crop Treated by Pesticide Listed Total Acres Treated Percentage Surveyed Landscape Treated
Soybean Corn Rice Grain Sorghum Cotton Green Bean
2014 Thiamethoxam i-neo 3677 789 669 92 264 0 5491 45.2
Imidacloprid i-neo 884 81 0 0 203 0 1168 9.6
Clothianidin i-neo 1054 81 0 0 11 0 1146 9.4
Dimethoate I-op 54 0 0 0 0 0 54 0.4
Cypermethrin I-py 33 0 0 0 61 0 94 0.8
Lambda-Cyhalothrin i-pyr 685 0 347 0 192 0 1224 10.1
Bifenthrin i-pyr 319 81 0 0 11 0 411 3.4
Chlorantraniliprole i-ry 319 50 0 0 72 0 441 3.6
Flonicamid i-u 175 0 0 0 10 0 185 1.5
Novaluron igr 285 81 0 0 11 0 377 3.1
Fludioxonil f 3637 868 669 92 192 0 5458 44.9
Mefenoxam f 3637 868 669 92 192 0 5458 44.9
Azoxystrobin f 1608 0 347 0 323 0 2278 18.7
Prothioconizole f 1567 509 62 0 0 0 2138 17.6
Trifloxystrobin f 1567 509 62 0 0 0 2138 17.6
Metalaxyl f 564 0 0 0 131 0 695 5.7
Tebuconazole f 564 0 0 0 131 0 695 5.7
Tiabendazole f 519 0 0 0 0 0 519 4.3
Pyraclostrobin f 479 0 0 0 0 0 479 3.9
Propiconazole f 0 0 292 0 0 0 292 2.4
2015 Thiamethoxam i - neo 2965 0 344 0 317 225 3851 38.3
Clothianidin i - neo 0 849 0 0 317 0 1166 11.6
Acephate i - op 0 0 0 0 317 0 317 3.2
Chlorpyrifos i - op 0 0 0 91 0 0 91 0.9
Bifenthrin i - pyr 0 0 0 0 317 0 317 3.2
Lambda-Cyhalothrin i - pyr 199 0 0 0 0 0 199 2
Chlorantraniliprole i - ry 768 0 0 0 317 93 1178 11.7
Flubendiamide i - ry 256 0 0 0 0 0 256 2.5
Novaluron igr 0 0 0 0 317 0 317 3.2
Fludioxonil f 2197 0 0 0 0 132 2329 23.1
Mefenoxam f 2197 0 0 0 0 132 2329 23.1
Azoxystrobin f 877 312 745 0 0 306 2240 22.3
Propiconazole f 0 312 344 0 0 0 656 6.5

Table 3. Summary of land use within a two-mile radius around the Low-Ag site in 2014.

Table 3. Summary of land use within a two-mile radius around the Low-Ag site in 2014.

Land Use Total Acreage % Acreage
Woodland 7489 54.0
Grass/Pasture 1110 42.5
Fish Ponds 1005 3.5
Wheat 443 1.2
Total Acreage 8043 100

Table 4. Compounds detected in initial samples of package bees and foundation wax used to establish colonies in 2014. Results reported as ppb, and are a mean of two separate samples randomly taken on the day of installation.

Table 4. Compounds detected in initial samples of package bees and foundation wax used to establish colonies in 2014. Results reported as ppb, and are a mean of two separate samples randomly taken on the day of installation.

Compound Class * Level of Detection (ppb) Beeswax Foundation Package Bees
coumaphos a 5 323.5 59
fluvalinate a 1 273 136.5
chlorpyriphos i 1 2.6 0
hexythiazox igr 30 trace 0
vinclozolin f 1 trace 0
atrazine h 6 0 96.9

Table 5. Pesticide residues detected in hive products. Results are given in parts per billion (ppb, ±SE). Where results are reported as 0, compound was not detected. Where results are reported as "trace" the compound was detected, but at a level too low to be quantifiable.

Table 5. Pesticide residues detected in hive products. Results are given in parts per billion (ppb, ±SE). Where results are reported as 0, compound was not detected. Where results are reported as "trace" the compound was detected, but at a level too low to be quantifiable.

Pesticide Class * Level of Detection (ppb) 2014 2015
Low-Ag High-Ag High-Ag
New Wax Honey Pollen New Wax Honey Pollen New Wax Bees
Coumaphos a 5 158.85 (95.38) 0 0 103.75 (73.08) 0 0 0 0
Coumaphos Oxon *** a 5 1.28 (2.55) 0 0 trace 0 0 0 0
Fluvalinate a 1 128.53 (61.1) 0 0 63 (73.52) 0 0 0 0
Amitraz a 4 0 0 0 0 0 0 0 0
DMA ** a 50 0 0 0 0 0 0 0 297.5 (595)
DMPF ** a 10 0 0 0 0 13.05 (15.66) 0.38 (0.25) 769.75 (373.05) trace
Thymol a 50 trace 0 0 0 0 0 0 747.5 (1495)
Bifenthrin i 2 37 (30.2) 0 4.98 (9.95) 3.75 (4.37) 0 2.05 (4.1) 14.3 (3.03) 0
Chlorpyrifos i 1 0.68 (1.35) 0 0 0.55 (1.1) 0 0 0 0
Cyhalothrin i 1 0.55 (1.1) 0 3.78 (0.79) 0 0 2.48 (2.94) 0 0
Dimethoate i 50 0.25 (0.5) 0 0 0 0 0 0 0
Flubendiamide i 25 0 48.7 (68.87) 0 0 0 0 0 0
Methyl Parathion i 2 0.25 (0.5) 0 0 0 0 0 0 0
Hexythiazox igr 30 0.25 (0.5) 0 0 0.5 (0.58) 0 0 0 0
Azoxystrobin f 2 1.13 (2.25) 0 30.25 (36.07) 2.13 (4.25) 0 0 0 0
Carbendazim f 5 0 0 0 0 0 0 0.25 (0.29) 0
Chlorothalonil f 30 0 0 0 0.5 (0.58) 0 0 0 0
Metalaxyl f 2 1.55 (3.1) 0 0 0 0 0 0 0
Trifloxystrobin f 1 0.5 (0.58) 0 0 0 0 0 0 0
Vinclozolin f 1 0 0 0 0.25 (0.5) 0 0 0 0
Atrazine h 6 2.35 (4.7) 0 0 0 0 0 0.25 (0.29) 0
Metolachlor h 6 0 0 0 0 0 0 241.25 (311.42) 0
Metribuzin h 1 0 0 0 0 0 0 10.9 (5.01) 0
Pendimethalin h 6 8.8 (16.94) 0 0 0 0 0 0 0
Tribufos d 2 0 0 3.9 (7.8) 0 0 0 8.48 (16.95) 0

Table 6. All beehive samples were screened for 174 common agricultural chemicals and metabolites. Of these, 148 compounds that were not detected in any samples are listed, with their levels of detection (LOD) in ppb.

Table 6. All beehive samples were screened for 174 common agricultural chemicals and metabolites. Of these, 148 compounds that were not detected in any samples are listed, with their levels of detection (LOD) in ppb.

Compound LOD Compound LOD Compound LOD
1-Naphthol 10 Dinotefuran 2 Parathion methyl 2
3-Hydroxycarbofuran 10 Diphenamid 20 Permethrin total 10
4,4 dibromobenzophenone 4 Endosulfan I 2 Phenothrin 10
4-Hydroxychlorothalonil 50 Endosulfan II 2 Phorate 50
Acephate 50 Endosulfan sulfate 2 Phosalone 10
Acetamiprid 2 Endrin 10 Phosmet 10
Acetochlor 50 Epoxiconazole 1 Piperonyl butoxide 50
Alachlor 10 Esfenvalerate 2 Pirimiphos methyl 20
Aldicarb 4 Ethion 10 Prallethrin 4
Aldicarb sulfone 2 Ethofumesate 10 Profenofos 10
Aldicarb sulfoxide 20 Etoxazole 1 Pronamide 1
Aldrin 10 Etridiazole 50 Propachlor 10
Allethrin 10 Famoxadone 20 Propanil 10
Amicarbazone 30 Fenamidone 10 Propargite 10
Azinphos methyl 6 Fenbuconazole 10 Propazine 20
Bendiocarb 10 Fenhexamid 6 Propetamphos 4
Benoxacor 20 Fenoxaprop-ethyl 20 Propham 20
BHC alpha 4 Fenpropathrin 10 Propiconazole 20
Bifenazate 20 Fenpyroximate 5 Pymetrozine 20
Boscalid 4 Fenthion 10 Pyraclostrobin 15
Bromuconazole 20 Fipronil 10 Pyrethrins 50
Buprofezin 20 Flonicamid 8 Pyridaben 10
Captan 10 Fludioxonil 20 Pyrimethanil 20
Carbaryl 30 Fluoxastrobin 4 Pyriproxyfen 10
Carbofuran 10 Fluridone 10 Quinoxyfen 10
Carboxin 4 Flutolanil 4 Quintozene (PCNB) 1
Carfentrazone ethyl 1 Heptachlor epoxide 10 Resmethrin total 5
Chlorfenopyr 1 Heptachlor 4 Sethoxydim 2
Chlorfenvinphos 6 Hexachlorobenzene (HCB) 1 Simazine 50
Chlorferone 50 Hydroprene 20 Spinosad 50
Chlorpropham (CIPC) 40 Imazalil 20 Spirodiclofen 2
Clofentezine 100 Imidacloprid 5-hydroxy 25 Spiromesifen 10
Clothianidin 1 Imidacloprid 1 Tebuconazole 8
Cyfluthrin 4 Imidacloprid olefin 10 Tebufenozide 10
Cypermethrin 4 Indoxacarb 3 Tebuthiuron 2
Cyphenothrin 20 Iprodione 50 Tefluthrin 1
Cyprodinil 1 Lindane 4 Tetrachlorvinphos 4
DDD p,p' 4 Linuron 20 Tetraconazole 6
DDE p,p' 2 Malathion 4 Tetradifon 1
DDT p,p' 4 Methamidophos 4 Tetramethrin 10
Deltamethrin 50 Methidathion 10 Thiabendazole 1
Diazinon 5 Methomyl 10 Thiacloprid 1
Dichlorvos (DDVP) 50 Methoxyfenozide 10 Thiamethoxam 1
Dicloran 1 MGK-264 50 THPI 50
Dicofol 1 MGK-326 10 Triadimefon 2
Dieldrin 10 Myclobutanil 15 Triadimenol 45
Difenoconazole 10 Norflurazon 6 Triflumizole 50
Diflubenzuron 10 Oxamyl 5 Triticonazole 10
Dimethenamid 10 Oxyfluorfen 1
Dimethomorph 20 Paradichlorobenzene 10

jacksongoved1943.blogspot.com

Source: https://www.mdpi.com/2075-4450/10/9/280/htm

0 Response to "Greenleaf Feed and Seed Poplarville Ms"

Post a Comment

Iklan Atas Artikel

Iklan Tengah Artikel 1

Iklan Tengah Artikel 2

Iklan Bawah Artikel
